Temperature range
-40 to 200°C (depending on cooling / heating liquid)
Chamber size
Approx. 170 x 90 x 170 mm
Additional Inputs (optional)
PT 100 temperature port for immersion probes to measure temperature directly in the sample
The DisperCool 3000 is used for deep-freezing test samples to about glass-transition temperature prior to sample cutting. This patented system is specifically designed for Dispersion Testing to ensure a perfect test sample preparation and highest quality of the samples surface area.
Temperature range
-40 to 200°C (depending on cooling / heating liquid)
Chamber size
Approx. 170 x 90 x 170 mm
Additional Inputs (optional)
PT 100 temperature port for immersion probes to measure temperature directly in the sample
The sample preparation process is very simple and convenient:
First the sample is pre-cut (if needed) and then easily placed in the quickopen sample holder and then inserted into the tabletop DisperCool unit. Inside the DisperCool chamber, silicon oil is pre-chilled to a low temperature from minus 20 to minus 40°C. The sample holder is placed into the chamber which can hold up to two sample holders. Once the safety lid of the chamber is closed, the cooling process and integrated timer are immediately started.
During the cooling process, the sample is cooled to glass transition temperature. This means that a totally solid sample is produced.
The cooling / preparation time – usually between 5 and 12 minutes depending on the sample type and shape – can easily be set by the operator and can be monitored during the process on a count-down timer display. Once the cooling time is over, the operator is notified by an acoustic signal allowing the operator to open the chamber lid and take out the sample holder along with the sample.
Now the sample at glass transition temperature can be cut and processed like a normal solid hard rubber sample without smearing, distortion or modification of the sample surface. The DisperCool 3000 provides perfect samples for conventional cutters or automatic cutters like the DisperCut 3000.
The whole DisperCool 3000 process is closed, sustainable and environmentally friendly as no consumables like liquid nitrogen or other cooling gases are required.
-40 to 200°C (depending on cooling / heating liquid)
Silicone oil, approximately 3 liters
Approx. 170 mm x 90 mm x 170 mm
Two independent sample holders
Max. 25 x 20 x 20 mm

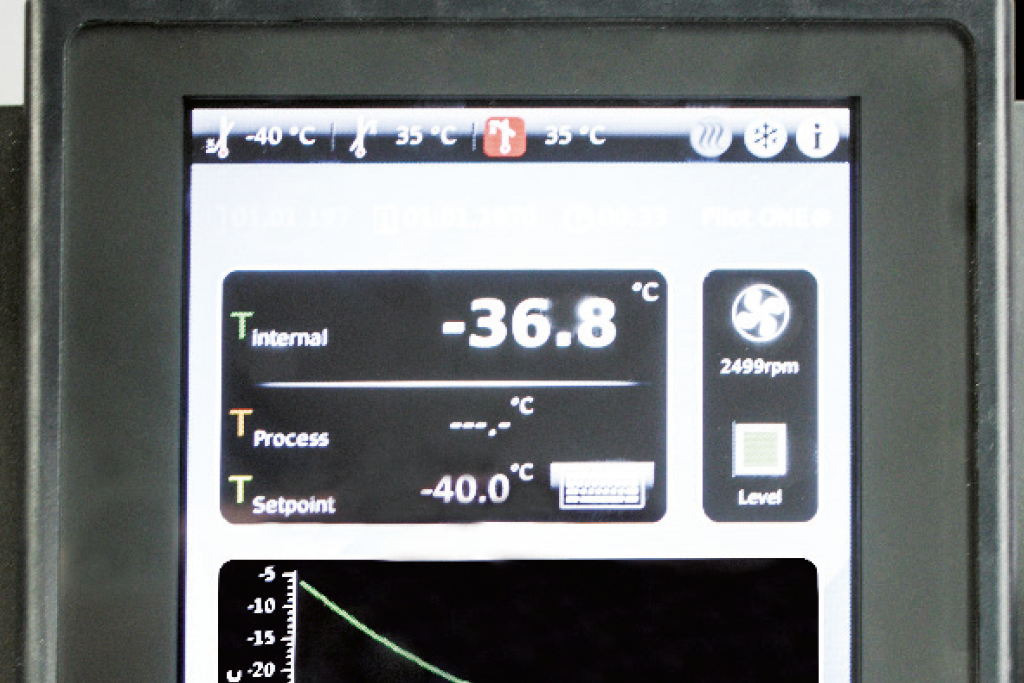

6-digit timer display with acoustic signal 3,5“ color-touch temperature display
PT 100 temperature port for immersion probes to measure temperature directly in the sample
Max. 420 Watts, air cooled
230 - 250 VAC, 50 – 60 Hz, 10 Amps
USB, RS232
Configurable user input modes and levels Integrated temperature and level protection switches
500 mm x 425 mm x 450 mm
approx. 40.5 kg (net)
